AMD03-P02 - NG6, 2 station Cetop Manifold
Product Category：
Products Detail

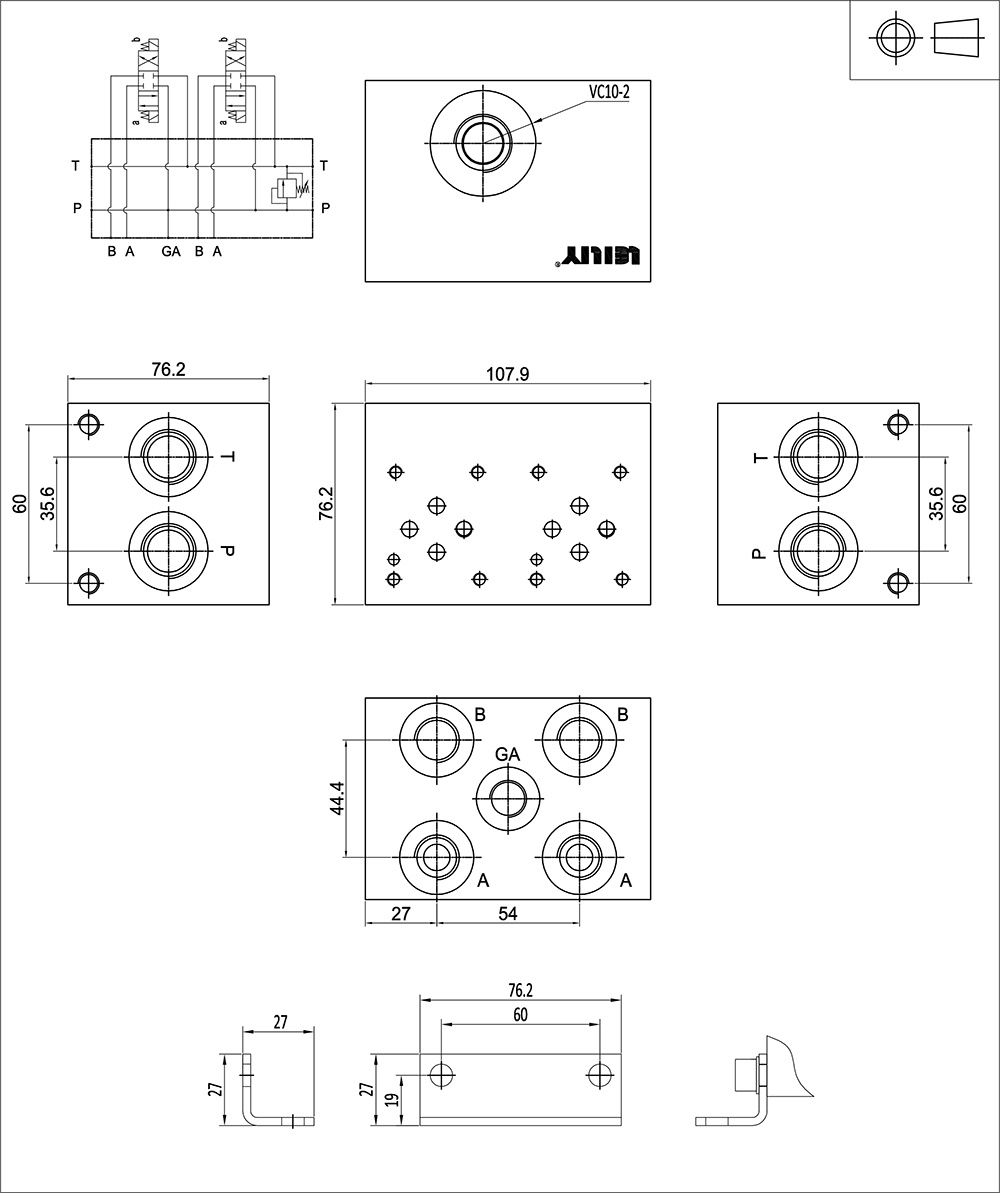

● Dimensions
● Model Code
| AMD03 | P | ** | 2 | ** | CAVITY |
| | | | | | | | | | | | |
|
NG6 Aluminum Manifold 6061-T6 |
Parallel Circuit P Standard Flow |
No. of Stations: 01-12 Stations |
Valve Spacing 54 mm [2.13] inch |
Port Threads see port threads chart |
Omit if cavities not required C: One common cavity VC10-2 S: One SUN cavity T-10A |
| No. of stations | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 |
|
"L1" length mm [inch] |
76.2 [3] |
107.9 [4.25] |
161.9 [6.38] |
215.9 [8.5] |
269.8 [10.62] |
323.8 [12.75] |
378 [14.88] |
431.8 [17] |
485.9 [19.13] |
539.8 [21.25] |
593.9 [23.38] |
647.7 [25.5] |
|
apx. Weight kg [lb] |
1.5 [3.5] |
2 [4] |
3 [6] |
4 [8] |
4 [9] |
5 [11] |
6 [13] |
7 [15] |
8 [17] |
9 [19] |
10 [20] |
10 [21] |
| Port Threads | P&T | A&B | GA | Valve mtg. | Manifold mtg. | |
| P | Z(NPT) | 1/2 | 3/8 | 1/4 |
10-24UNC DP16 |
5/16-18UNC DP11.1 |
| S | SAE | #10 | #8 | #6 | ||
| B | G(PF;BSPP) | 1/2 | 3/8 | none | M5 DP16 | M8 DP12 |
| M | M | M22 | M18 | none | ||
| T | ZG(PT:BSPT) | 1/2 | 3/8 | none | ||
Features:
● Cetop 3 multi-station manifold.
● Material: Aluminium alloy only.
● Working pressure: 250 bar.
